ManePC - Dock Dell Latitude E6330 E6400 E-Port Replicator II - USB 3.0 Docking - PR02X (Old)

Title

Dell J577C 0FJFGD 452-10865 452-10767 Port Replicator Docking Station PRO 02X USB 2.0


Description(old)

The Dell Simple E-Port Replicator.
Provides workspace flexibility with convenient cable management and viewing expandability with flat panel and dual-display support.

If you use your laptop in a work or home office environment the E-Port Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor into the port replicator and use your laptop like a desktop!
Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices.

Dell M/N: PR02X (PRO2X)

Dell P/N: 0CY640 (CY640), 0K086C (K086C), 0G889C (G889C), 0D7HM7 (D7HM7), 0HJVX1 (HJVX1), 04RTRN (4RTRN).
Misc P/Ns: VM8F7, 100218-555, K09A, K09A001, F3110C

Power Supply: Requires 130W (19.5v 6.7a) such as Dell PA-4E or PA-13.
Please note that if you intend to use this with a Precision M6400, M6500, M6600, or M6700 you will require a 210w AC Adapter such as the PA-7E (with 7.4mm x 5.0mm tip only).

Product Specifications:
5x USB 2.0
1x eSATA/USB2.0
1x Network(RJ-45)
2x DisplayPort (Dual-Mode)
2x Display Out (DVI)
1x Display Out (VGA)
1x Line In (Microphone)
1x Line Out (Headphones/Speakers)
1x E/Dock Monitor Stand Connector
1x Parallel (Printer) Port
1x Serial
1x Keyboard (PS/2)
1x Mouse (PS/2)

Compatible With:
Latitude E4200, E4300, E4310, E4320, E5400, E5410, E5420, E5430, E5500, E5510, E5520, E5530, E6220, E6230, E6320, E6330, E6400, E6400 ATG, E6400 XFR*, E6410, E6410 ATG, E6420, E6420 ATG, E6420 XFR*, E6430, E6420 ATG, E6430s, E6500, E6510, E6520, E6530
Precision M2400, M4400, M4500, M4600, M4700, M6400, M6500, M6600, M6700

*Please note that the Latitude E6400 XFR and E6420 XFR require the use of a "Rugged adapter for E-Port" (Dell P/N: 452-10895) for the dock to be fully compatible.

Not suitable for 6430u Ultrabook

Please note the following information:
* The Latitude E6400 XFR and E6420 XFR require the use of a "Rugged adapter for E-Port" (Dell P/N: 452-10895) for the dock to be fully compatible.
** The Latitude 12 5000 (E5250), Latitude 12 7000 (E7240, E7250), Latitude 14 7000 (E7440, E7450) require the use of a "Dell Docking Spacer for E7x40" (Dell SKU: 452-BBDB) for the dock to be fully compatible. This is often offered as a free add-in if the laptop was ordered directly from Dell.

_____________________________________________________________________________________________






Title
Dell Latitude E6330 E6400 Simple E-Port Replicator II USB 3.0 Docking Station















Description

The Dell Simple E-Port II Replicator.
Provides workspace flexibility with convenient cable management and viewing expandability with flat panel and dual-display support.
If you use your laptop in a work or home office environment the E-Port Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor into the port replicator and use your laptop like a desktop!
Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices.

Dell M/N: Simple E-Port II Replicator PR03X, PRO3X, K07A

Dell P/N: 0CPGHK, 06TJ57, 0MVP71, 0XX6F0, 0RMYTR, V1P2H, 75JJ4, 0PDXXF, WV7MW A00, 452-11520, 452-11424, 331-6307, 452-11429, 0T0J21, 331-7947
Dell Box P/N: 9C3RG
Manufacturer Part : MVP71

Power Supply NOT included. Requires 130W power adapter such as PA-4E or PA-13 (please search our store for Dell 130W 19.5v 6.7a Adapter)

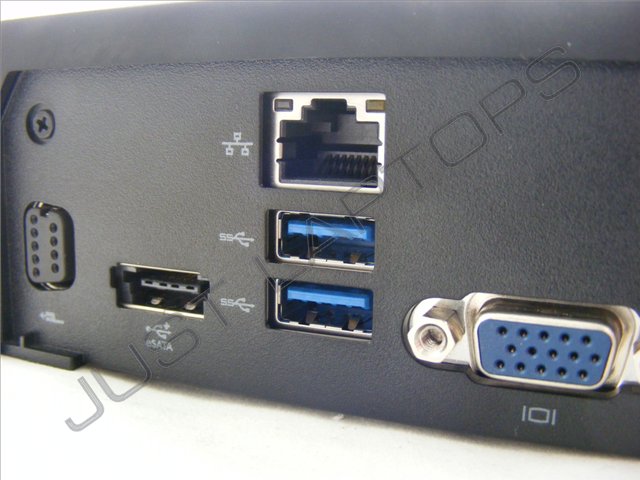

Onboard Ports:
3x USB 2.0,
2x USB 3.0 **,
1x Network (RJ-45),
3x Display Out (1x VGA, 1x DVI, 1x Display Port 1.2),
1x eSATA/USB2.0 Port,
1x Audio Out (Speakers/Headphones),
1x Audio In (Microphone/Line In),
1x E/Port Monitor Stand Connector.

If your model of laptop does not natively feature USB 3.0 ports, please presume that the USB 3.0 ports on the dock will function as USB 2.0 whilst the laptop is docked.

Compatible with the following laptop(s):
Dell Latitude E4200, E4300, E4310, E5400, E5410 , E5420, E5430, E5440, E5500, E5510, E5520, E5530, E5540, E6220, E6230, E6320, E6330, E6400, E6400 ATG,E6410, E6410 ATG, E6420, E6420 ATG E6430, E6430 ATG, E6430s, E6440, E6500, E6510, E6520, E6530, E6540, XT3

Precision M2400, M4400, M4500, M4600

Note: The below laptops are compatible with this docking station but require an additional accessory /higher specification power supply in order to function.

Requires Docking Spacer (Dell SKU: 452-BBDB): Latitude E5250, E5550, E5570, E7240, E7250, E7440, E7450
Requires "Rugged adapter for E-Port" (Dell P/N: 452-10895): Latitude E6400 XFR, E6420 XFR
Requires 210W 7.4mm x 5.00mm Tip PSU: Precision M4700, M4800, M6400, M6500, M6600
Requires 240W 7.4mm x 5.00mm Tip PSU: Precision M6700, M6800




Dell Latitude E6330 E6400 Simple E-Port Replicator II USB 3.0 Docking Station
