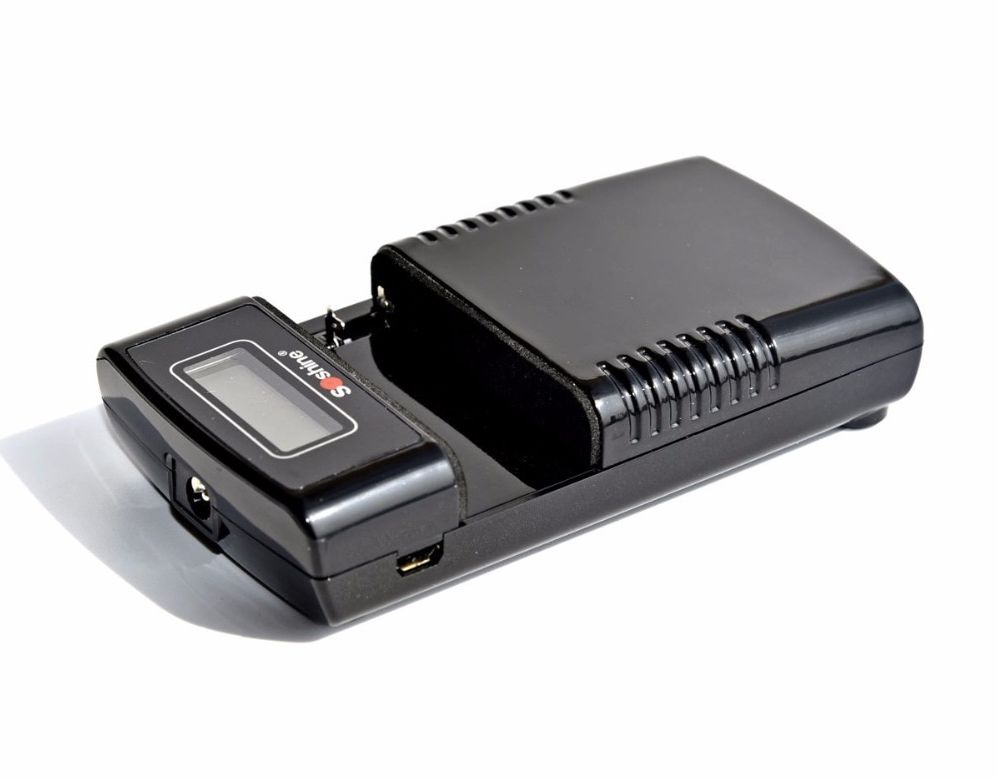

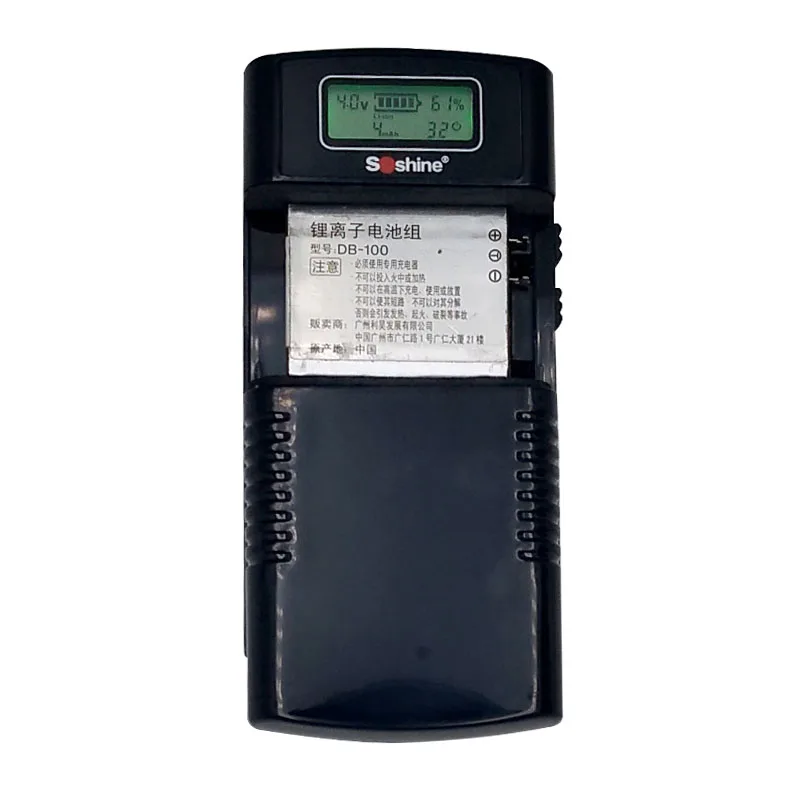

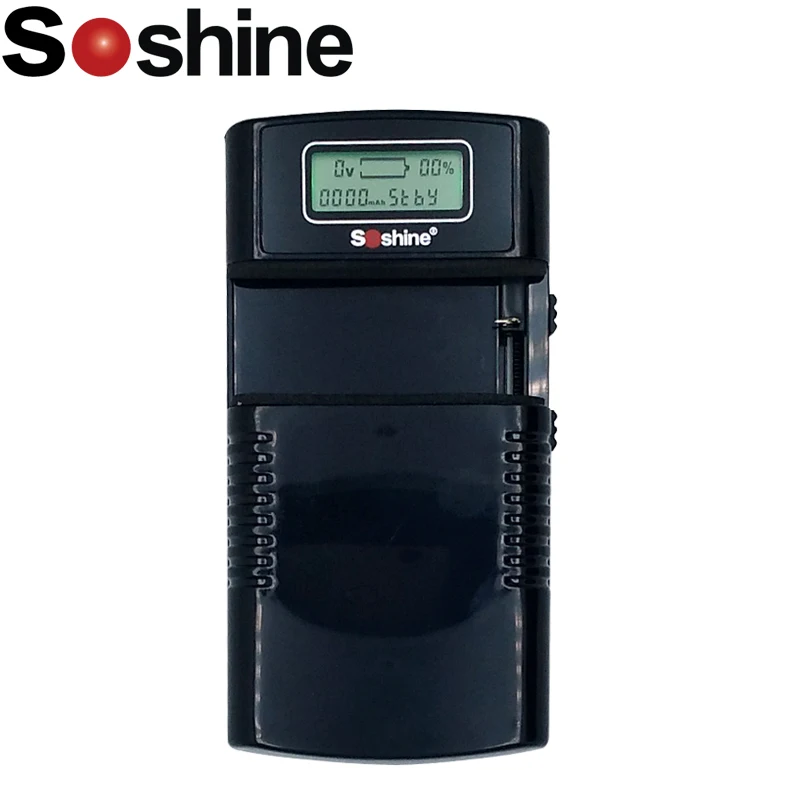

The intelligent charger can connect the power from supplied AC power adaptor or adaptor with 5V DC USB output or DC car cigarette lighter adaptor for charging, after power on, LCD display shows『Stby』characters, the charger is on standby mode and can insert a rechargeable Li-Ion battery pack for charging.
Feature:
Precision end-of-charge voltage detection
Floating-charging maintains battery in full charge
LCD displays for multi-information, voltage ,time ,charging percentage ,charging capacity ,worse battery and bad battery
Metal plates for charging connection can easy adjust for many different type battery pack
Automatic 3.7V/7.4V battery pack voltage and polarity detection
Over Charging timeout protection
Auto alert indication for worse battery pack and bad battery pack
Power input can use DC12V or Micro-USB DC5V for charging
Auto active function for Lithium battery pack open (0 Voltage)

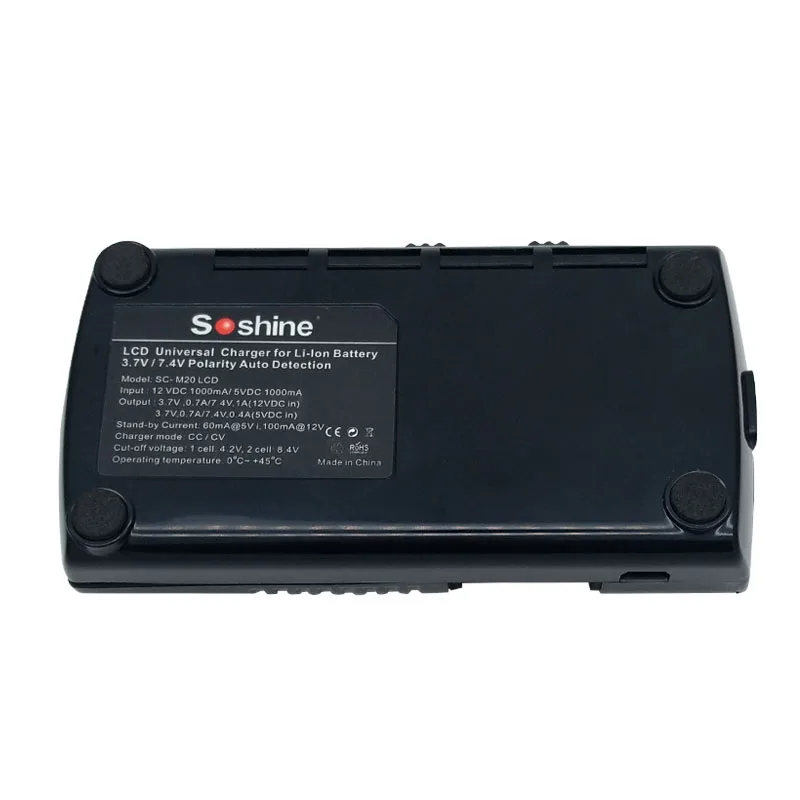

Specifications:
Adapter Input: AC 100-240VAC, 50/60Hz
DC IN:12V 1A
Output: 700mA @3.7V battery or 1000mA @7.4V battery
DC IN :5V 1A
Output:700mA @3.7V battery or 400mA @7.4V battery
Charger mode: constant current first then constant voltage(CC/CV )
Color: black

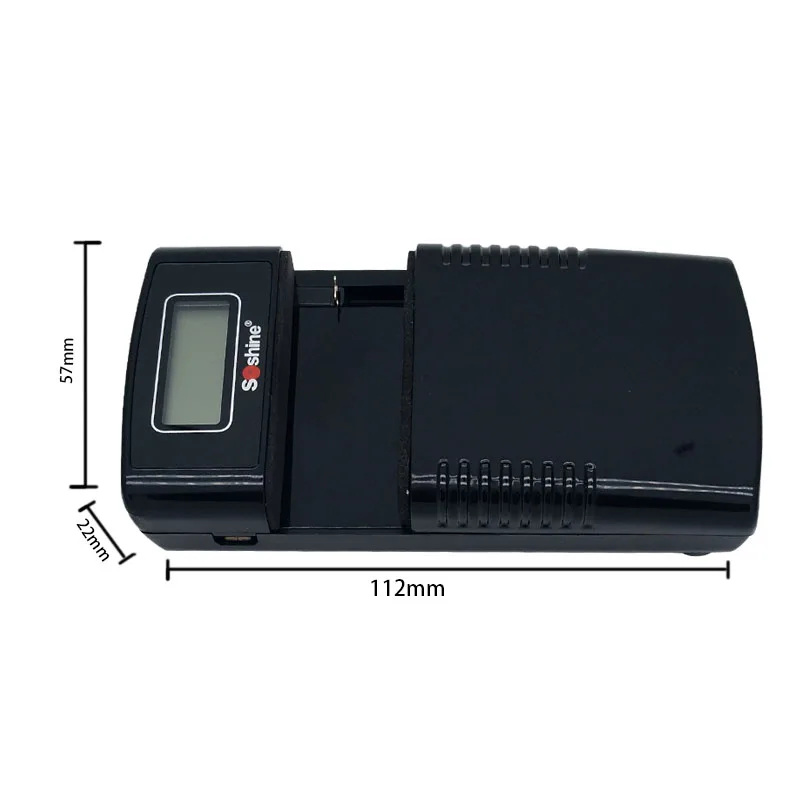

Size(mm): L112x W57 x H22mm
Weight :250g

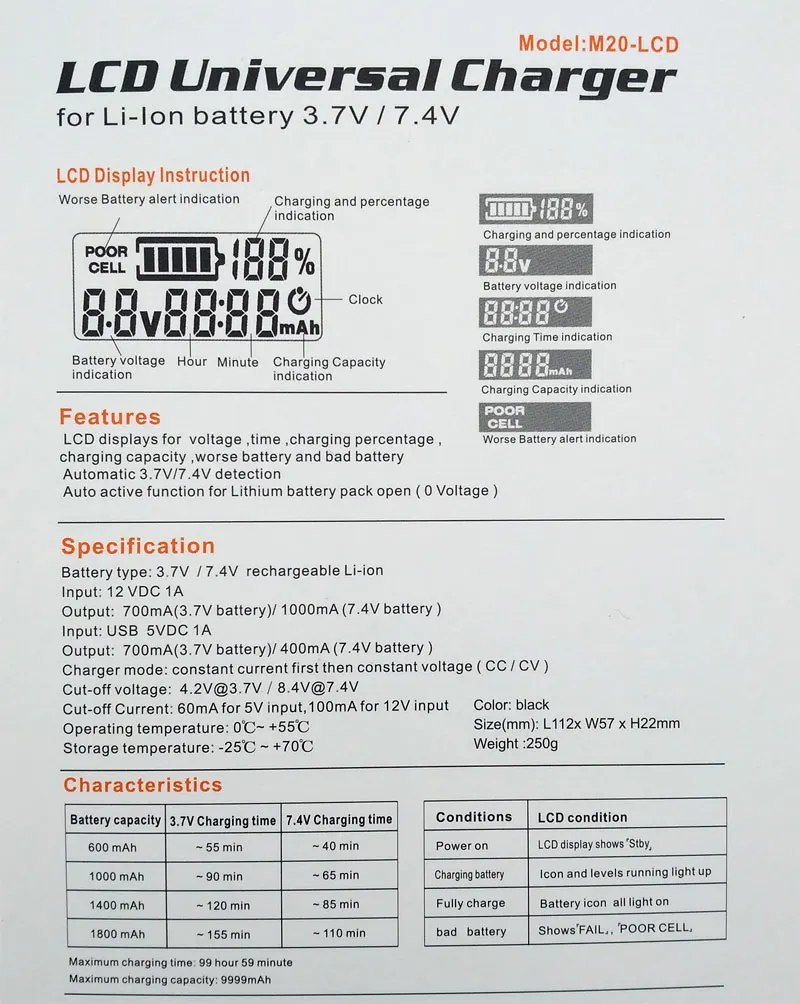

LCD display:
Package included:
1 x battery charger
_______________________________________________
Contenido del paquete:
1 cargador de batería (sin incluir la batería)
1x Cable USB
1 xCar cargador
