Nixie tubes

http://www.smbaker.com/nixie-tube-calculator-powered-by-a-raspberry-pi

http://lupinesystems.com/calc/ntc/

http://www.tube-tester.com/sites/nixie/dat_arch/IN-16_02.pdf

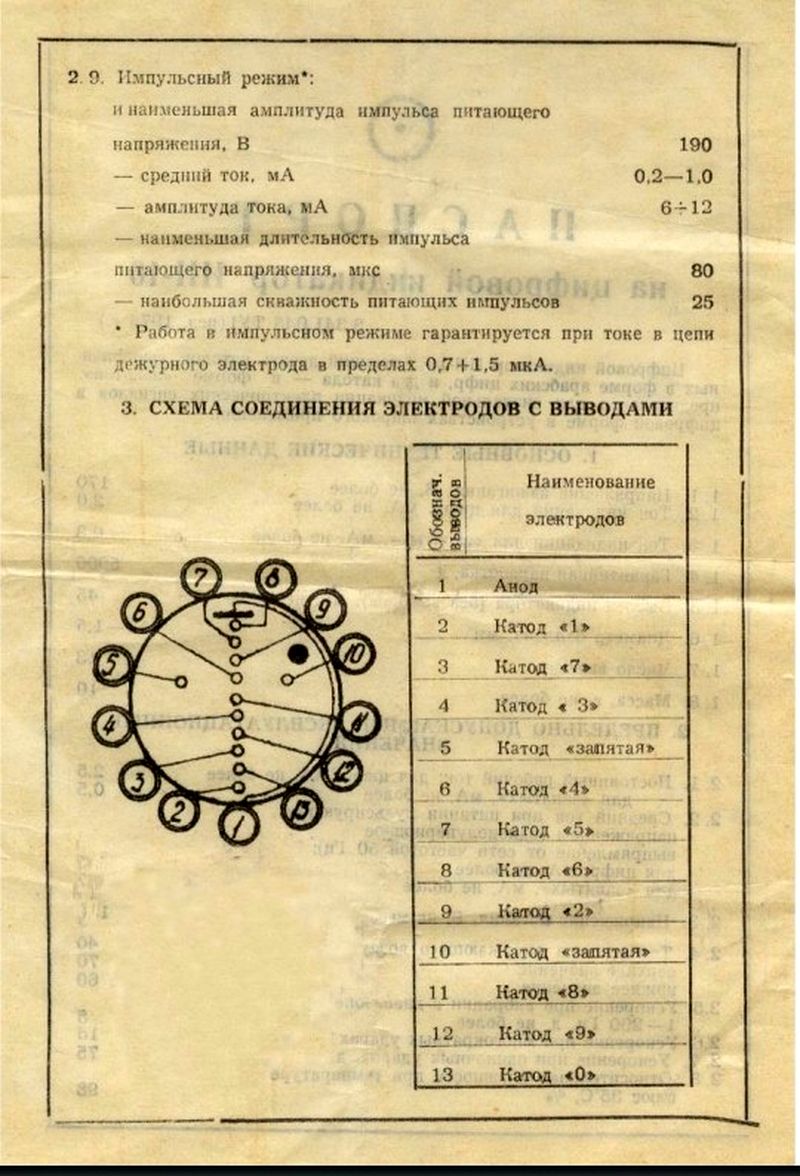

IN-16 10 cathodes in a shape of numbers 0 1 2 3 4 5 6 7 8 9


IN-14 10 cathodes in a shape of numbers 0 1 2 3 4 5 6 7 8 9





IN-12 10 cathodes in a shape of numbers 0 1 2 3 4 5 6 7 8 9




in-12 new nixie tube

Specs


Principle of Operation: neon gas, cold cathode.
Displayed digits: arabic numerals from 0 to 9 and one dot.
Digit height size: 18 mm.
Size of the Bulb: 21x31x35 mm
Color of a luminescence: orange
Mass: 20 g
Brightness: >100cd/m^2
Angle of visibility: >30 deg
Power supply voltage: > 200 V
Discharge appearance voltage: < 170 V
Current display: <=2mA
Operations current: Running from DC 2 - 3.5 mA
Operations current: Running from AC(50Hz) 2 mA
Life time: > 5000 hours
