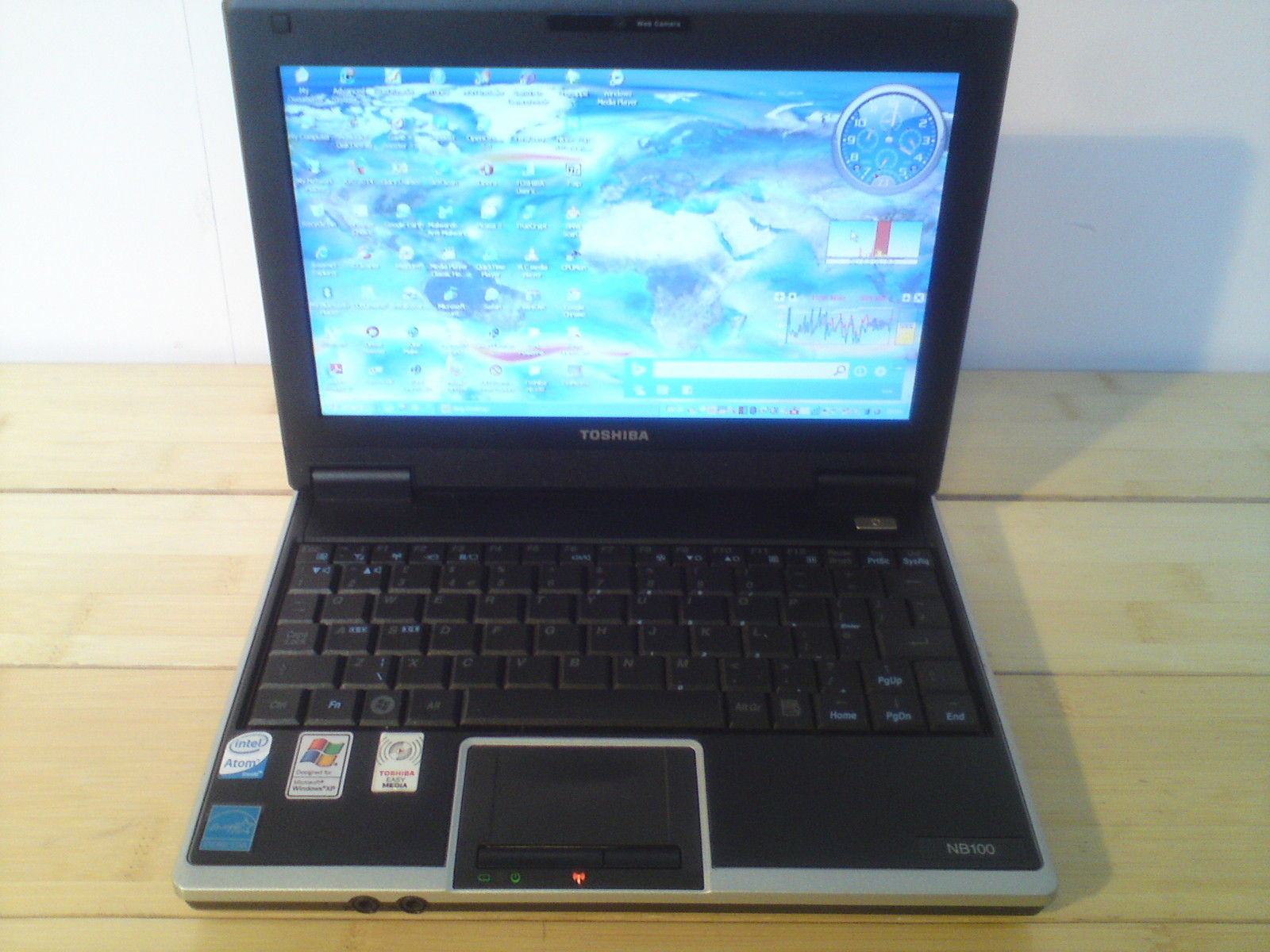

ManePC - Toshiba NB100 - Atom N270 1.6 Ghz , 2Gb Ram, 80Gb

Intel Atom N270 1.6 Ghz processor, 2Gb Ram, 80Gb HDD Win XP - 9.1" TFT 1024 x 768 ( XGA ) - black

Toshiba Laptop/Notebook with a 9.1" screen, fast but low energy saving Intel Atom N270 1.6 Ghz processor, 2Gb Ram, 80Gb HDD, Bluetooth, Webcam and Wireless. Windows XP Pro Home Sp3


https://www.manualslib.com/manual/657966/Toshiba-3410ct.html?page=8#manual

board, expandable to 192MB
One available memory slot (for use with 64MB
or 128MB memory module)
BIOS
APM V1.2; ACPI V1.0b; PnP V1.0a; VESA
V2.0; DPMS; DDC2B; SM Bios V2.3, PCI
BIOS V2.1
System Architecture
PCI Bus V2.2: Intel 440MX System Chipset
Hard Disk
12.0 billion byte Supports PIO Mode 4;
Supports Ultra DMA Mode 2,
Supports Multiword DMA mode 2
Accommodates 9.5mm height, 2.5" hard drive
13 ms average access time
Enhanced IDE (ATA-4) interface; Service
removable
External Floppy Diskette Drive
USB, 3.5", 1.44MB
Video
S3 Savage IX graphics controller
8MB SGRAM Internal Video Memory
128-bit BitBLT engine, Direct3D support,
33MHz
Video Ports
SVGA
Display
Polysilicon TFT Color LCD
11.3" diagonal: up to 16 million colors at 1024 x
768 resolution
External Color Support
16M colors:
1024x768, 800x600, 640x480 @
60/75/85Hz Non-Interlaced, simultaneous
mode
64K colors:
1024x768, 800x600, 640x480 @
60/75/85Hz Non-Interlaced, simultaneous
mode
1280x1024 @ 60/75Hz Non-Interlaced,
1600x1200 @ 60HZ Non-Interlaced
256 colors:
1024x768, 800x600, 640x480 @
60/75/85Hz Non-Interlaced, simultaneous
mode
1280x1024 @ 60/75Hz Non-Interlaced,
1600x1200 @ 60HZ Non-Interlaced
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 2000 TAIS
portege_3480ct.rtf Rev. 2 01/11/01
Audio
YAMAHA YMF752, 16-bit stereo
Compatibility: Windows Sound System V2.0
and Sound Blaster Pro compatible
MIDI playback
3D sound support
Direct Sound, Direct 3D Sound, Direct Music,
Full duplex sound support, 64 voices,
Headphone port (Stereo)
External mic port
Built-in speaker
Built-in mic
Communications
Integrated V.90 modem
Supports ring wake-up resume
RJ-11 modem port
Keyboard
85 keys with 12 function keys
2 mm key stroke
Dedicated Windows® key
Integrated AccuPoint II™ pointing device, scroll
function – programmable
Expansion
Two PC Card slots support two Type II or one
Type III PC Cards;
Supports: PCMCIA R2.01, PC Card 16,
CardBus
One expansion memory slot available (for use
with 64MB or 128MB memory module)
SVGA video port
Fast infrared port (4Mbps, IrDA V1.1 compliant)
Universal Serial Bus (USB) port
RJ-11 modem port
LAN Port Replicator bundled with system
Serial PCI port - for use with LAN Port
Replicator, I/O Adapter, and Multi-Media Port
Replicator
Dimensions (WxDxH)
10.3" x 9.1" x 0.8" – thickness may vary at
certain points on the system
Weight
3.4 lbs (With main 6-cell battery)
Power Supply
45W External AC Adapter
100-240V input voltage
50-60Hz frequency
4.9"W x 2.5"D x 1.0"H, .7 lbs.
Battery
Rechargeable, removable Lithium Ion battery
(10.8V, 3000mAh)
2.5 + hours battery life
3 hours recharge time (off)
ACPI V1.0b support
Battery life may vary depending on
applications, power management settings and
features utilized. Recharge time varies
depending on usage.
System Management
SM V2.3 BIOS support with asset tag capability
ACPI V1.0b power management
Toshiba Configuration Builder CD
Security
Power-on password
HDD access password
Keyboard lock
CPU Serial Number Security (Using SVPW
utility)
Setup Security (Using SVPW utility)
Screen Blank
Main system memory, modem, and internal
HDD security screws included
Cable lock slot
Software
Microsoft® Windows 2000, Windows NT 4.0
SP5,
Windows 98SE
AT&T WorldNet Services - 98SE
Customizable Toshiba/My Yahoo! Start page -
98SE
Microsoft Internet Explorer - 98SE/NT4.0/2000
Puma IntelliSync 97 - NT4.0 only
RingCentral - Win98SE only
Toshiba custom utilities - 98SE/NT4.0/2000
YAMAHA YMF744B Audio - 98SE/NT4.0/2000
Electronic User Guide - 98SE/2000
Warranty
1 year parts and labor
1 year battery

Environmental Specifications
Temperature:
Relative Humidity:
Operating: 20% to 80% non-condensing
Non-operating: 10% to 90% non-condensing
Altitude (relative to sea level):
Operating: -60m to 3,000m (-197' to 9,842')
Non-operating: -60m to 10,000m (-197' to
32,808')
Shock:
Operating: 10G
Non-operating: 60G
Vibration:
Operating: 0.5G
Non-operating: 1G
