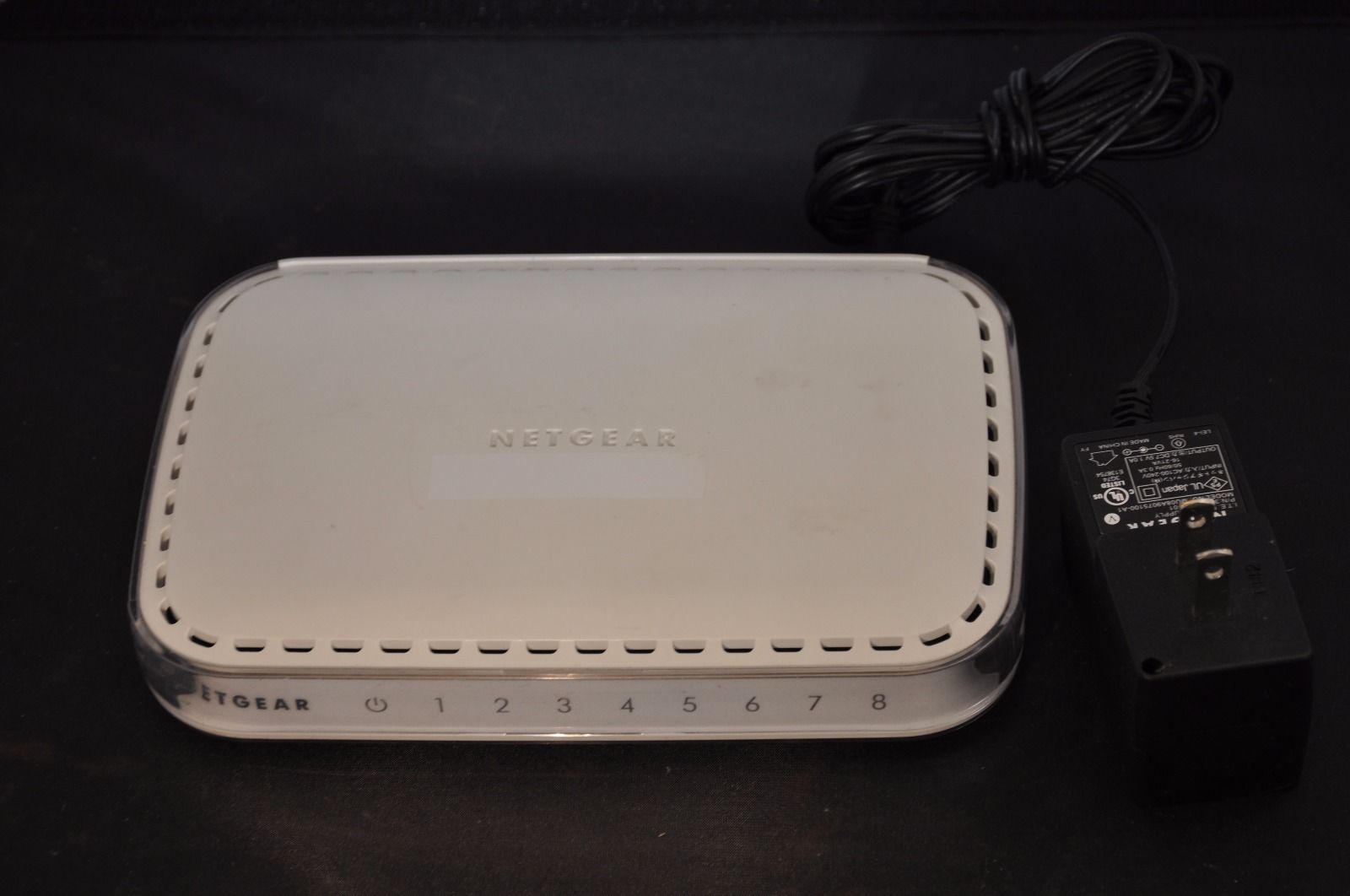

10/100Mbps 8 Port Switch Netgear FS608 V3

Description:

Product Information
Hang on - your network will soar when it is hooked up to NETGEAR's FS608! This powerful plug-and-play switch connects at 10 or 100 Mbps and makes it easy to link as many as eight computers or peripherals to your Ethernet network. You'll experience maximum performance for 10 or 100 Mbps devices with eight ports that automatically sense the correct speed while Auto Uplink on the ports adjusts for the different types of Ethernet cables. The FS608's sleek case has lights on the front for easy monitoring. Installation into your home network couldn't be simpler and, once powered on, it begins cool and silent operation - without an internal fan.

Product Identifiers
Brand NetGear
Model FS608
MPN FS608v3
UPC 606449064193

Key Features
Form Factor External
Ports Qty 8
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet
Compatibility Mac, PC, Unix

Features
Other Features Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Status Indicators Link activity, port transmission speed, power

Networking
Networking Type Switch
Connectivity Technology Wired
Switching Protocol Ethernet
Remote Management Protocol None
MAC Address Table Size 1K entries

Connectors
Interfaces 8 x network - Ethernet 10Base-T/100Base-TX - RJ-45, 8 x network - Ethernet 10Base-T/100Base-TX - RJ-45 female - 8, 8 x network node - Ethernet 10Base-T/100Base-TX - RJ-45 female - 8

Power
Power Consumption Operational 7.5 Watt
Power Supply Power adapter - external
DC 7.5V 0.8A

System Requirements
OS Required Apple MacOS, Linux, Microsoft Windows

Memory
RAM Memory 128 KB

Dimensions
Width 6.73 in.
Height 1.14 in.
Depth 4.45 in.
Weight 617.29 lbs

Miscellaneous
Enclosure Type External
Humidity Range Operating (Range) 10 - 90%
Max Operating Temperature 122 ňöF
Min Operating Temperature 32 ňöF
