RF-Remote - Hardware Repair microswitch - mouse





High quality dust proof Replacement Micro Switches for Vauxhall (Opel)
Corsa C, Meriva, Tigra, Combo, BMW, Citroen, Fiat, Ford, Land Rover, Lexus, Mercedes,
MG, Mitsubishi, Nissan, Peugeot, Porche, Saab, Smart and various other models of

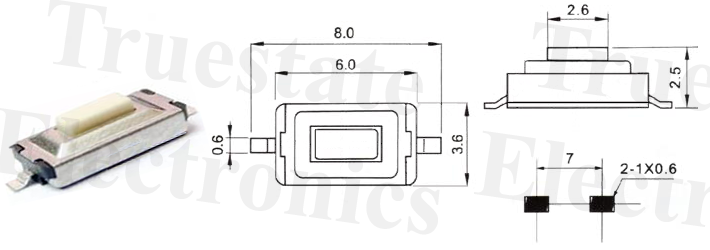

Button Remote Key Fobs (Please check the dimensions below)

Note that these are also widely used in keyboards and other devices.
These are the latest improved quality durable switches unlike others on sale.
Please note that these replace the round button type and better than
the black button ones in both performance and durability

These are the best quality high temperature type and harder to find.
Be aware the cheaper standard type have the notch in the shell
and are lesser quality over all including material and clicks.



The original buttons on these remotes where cheap, tatty and of poor quality.
And if you where unfortunate to damage your switches in your
Remote then its a trip to a Dealer for a New Key fob and Reprogramming
that will probably cost you over ÂŁ100

They are very simple to replace, with a minimal of soldering skills
you can replace damaged switches, and save yourself a small fortune.
Note: You may have to re sync your remote as per your Cars Manual






Technical Specification
1 Switch
Environment temperature: -40ÂșC~+88ÂșC
Relative Humidity: (40ÂșC)≀96%
Rating: DC12V 0.5A
Contact Resistance: ≀0.03Ω
Insulation Resistance: ≄ 100MΩ
Dielectric Strength: AC250V (50Hz for 1 minute)
Operating Force: 250±50gf
Mechanical Life test (without Load): ≄ 100,000 times
RoHS Compliant
