US211M Digital Water Flow Meter Reader with Hall Water Flow Sensor USN-HS06PS 0.05-1L/min Flow Displayer¬†Sea Zhongjiang Dijiang
1.¬†The digital display meter controller¬†US211M¬†can display the¬†instantaneous flow,¬†¬†flow unit is L / min(or GPM),
2.¬†The digital display meter¬†controller¬†US211M¬†can display the¬†cumulative flow, unit is L(or US Gallon)
3. The¬†digital display meter¬†controller US211M¬†can count and show¬†the frequency of the flow sensor. The frequency is in right proportion of the water flow rate.

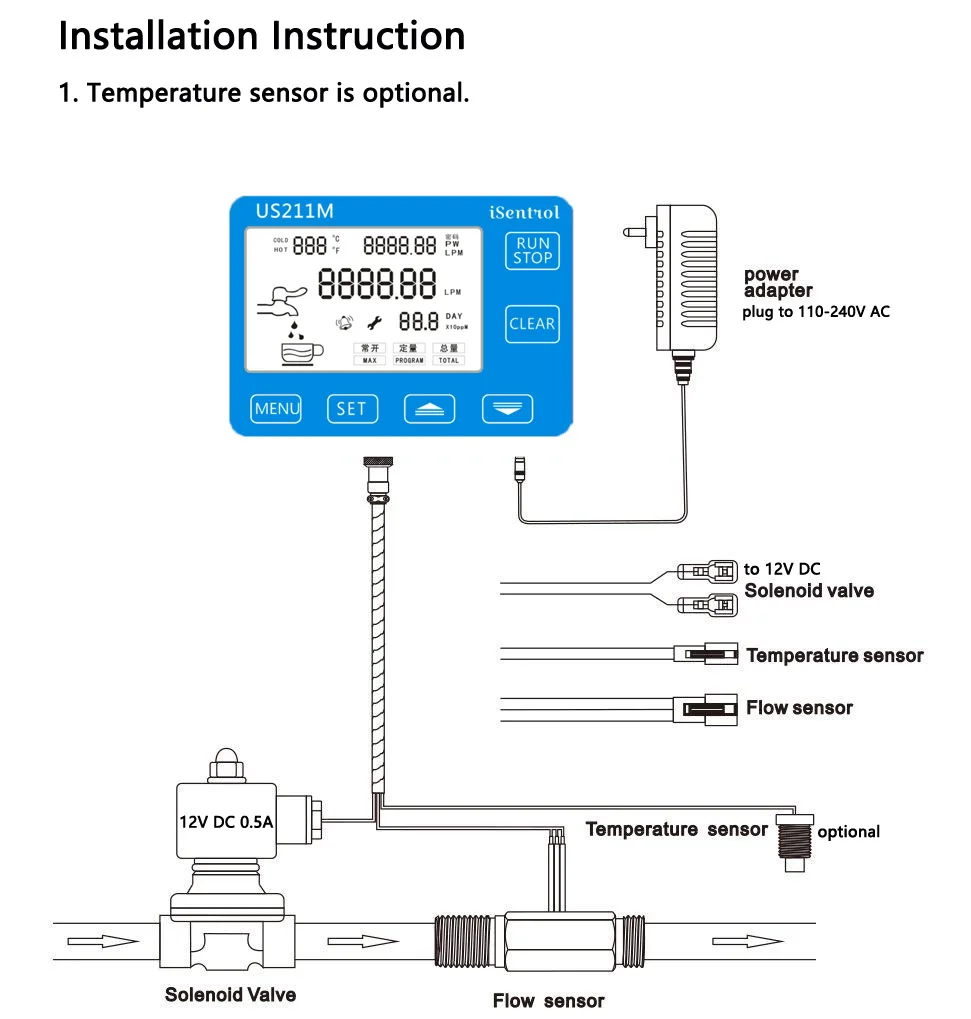

4. The¬†digital display meter¬†controller US211M can show the temperature sensor with the NTC50K sensor. But the¬†whole¬†set doesn't¬†include the NTC50K sensor.
5. The¬†digital display meter¬†controller US211M can do dosage control with an additional solenoid valve which is not included in this set.
The large white backlit LCD screen: beautiful, generous, to realize digital.
The use of ultra wide range of external power supply: to make it more widely used, more energy¬†and a variety of models to connect.
Specification of Controller:
Quantitative Range: 0.1-9999 L (K value can be placed into the instrument constant¬†maximum value 1-9999 L / min)
Size:103 x 80 x 35mm
(K value can not be zero)
Petroleum, chemical, pharmaceutical, food, small and medium water machine¬†and other industries gas, liquid flow quantity (batch) management control.
Flow sensor connecting type:¬†6mm Outer diamter quick plug end
Working Voltage: 5-18V DC
Repeat Error: ¬Ī1% (must be stable pressure)
Temp range : -20 -60 celsius pure water.
Flow Range:¬†0.05-1L/min Accuracy: +-5%
Working Pressure: 0.05-0.8MPa
K Value of this sensor: K=155
NPN output pulse signal
Wire length: 35cm,
Connection: Red:+; Black: GND, Yellow: Singal.
Whole Set Package include:
1* Controller¬†US211M digital flow meter
1* USN-HS06PS POM hall water flow sensor
1* Power Adaptor
1* User manual(the e-manual is available here:http://us211m.com/download/showdownload.php?id=2 )
About iSentrol Ultisolar:
Parallel (straight) threads, British Standard Pipe Parallel thread (BSPP: Originally also known as British Standard Pipe Fitting thread/BSPF and British Standard Pipe Mechanical thread/BSPM), which have a constant diameter; denoted by the letter G. Under the standard of ISO 228
G1/2" the nominal diameter is 15mm, commonly known as DN15mm;
G3/4" DN20mm; G1"¬† DN25mm;G2"¬† DN50mm
